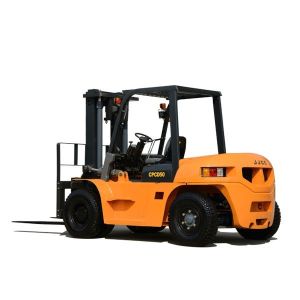

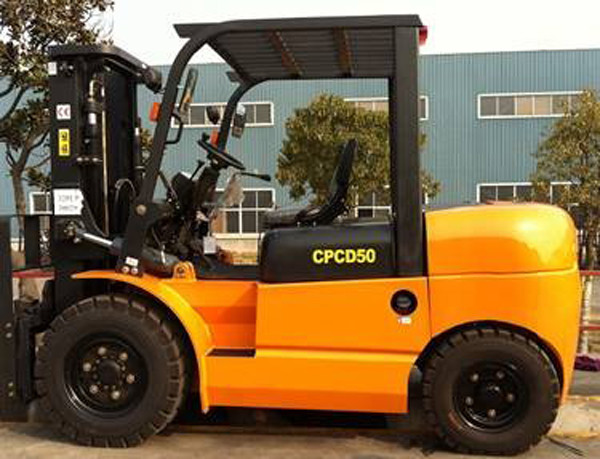

CPCD50 5 Tonne 28km/H Logistics Machinery With 6 Cylinder

Product Categories

Nanyang Xinda Electro-Mechanical Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: CPCD50 5 Tonne 28kmH Logistics Machinery With 6 Cylinder
Brand: XDEM
Price: 8000 USD

Brand Name : XDEM

Model Number : CPCD50

Certification : ISO CE

Place of Origin : China

MOQ : 1 set

Price : USD8000-12000

Payment Terms : L/C, T/T

Supply Ability : 500 sets per month

Delivery Time : 30 working days

Packaging Details : Nude packing

Condition : New

Power type : Diesel

Capacity : 5000kg

Load center : 600mm

Wheel base : 2250mm

Lifting height : 3000m

Forks size : 1220×150×60

Contact Now

XDEM JJCC Forklift 5Tons Diesel type CPCD50 hand operated Forklift Truck manual in good price

5 ton forklift CPCD50 Main Configuration:

Manufacturer								JJCC
Model								CPCD50
Power type								Diesel
Rated capacity							kg	5000
Load center							mm	600
Lift height							mm	3000
Free lift height							mm	160
Fork size							mm	1220×150×60
Fork outside spread					Min./Max.		mm	300/1845
Mast tilt angle							deg	6 /12
Front overhang							mm	635
		Length to fork face					mm	3472
Overall		Overall width					mm	1995
dimensions		Mast lowered height					mm	2519
		Mast extended height					mm	4419
		Overhead guard height					mm	2500
Turning radius							mm	3300
		Travel speed					km/h	28/26
no load/full load		Travel speed
		Lift speed					mm/sec	550/390
Max. gradeability(no load/full load)								≥20%
Max. drawbar pull							KN	>21
Self weight							kg	8240
		Front						8.25-15-14PR
Tyre		Rear						8.25-15-14PR
		Front					mm	1470
Tread		Rear					mm	1700
Wheelbase							mm	2250
Min.ground clearance				Mast			mm	200/180
(no load/full load)				Frame				230/190
	Type							Hydraulic
Transmissions	Shift				FWD/BWD			2/2
Battery							V/AH	2-12V/80AH
Type			Diesel engine
Model			A-6BG1QC			MitsubishiS6S
Rated output( kw/rpm)			82.3/2000			67.6/2300
Rated torque (N.m/rpm)			416/1600			299/1600
No.of cylinder			6			6
Bore×stroke (mm)			105×125			94×120
Displacement (L)			6.494			4.996

CPCD50 5 Tonne 28km/H Logistics Machinery With 6 Cylinder
